Ultrasonic Emulsifier
Apr 06, 2018

   Without changing the customer's existing production equipment and process, you can upgrade your general equipment to advanced chemical equipment with ultrasonics through simple installation. The ultrasonic power is large, the investment is small, the installation is simple, and the output and efficiency are significantly improved.

    The phacoemulsifier is composed of ultrasonic vibrating parts, ultrasonic special driving power and reaction kettle. The ultrasonic vibrating parts mainly include high-power ultrasonic transducers, horns, and tool heads (emission heads) for generating ultrasonic vibrations. This vibrational energy is emitted into the liquid. The transducer converts the input electrical energy into mechanical energy, ie ultrasonic waves. The manifestation is that the transducer moves back and forth in the longitudinal direction with an amplitude of typically several micrometers. This kind of amplitude power density is not enough and cannot be used directly. The horn magnifies the amplitude as designed, isolates the reaction solution and the transducer, and also serves to fix the entire ultrasonic vibration system. The tool head is connected to the horn, and the horn transfers the ultrasonic energy vibration to the tool head. The tool head then transmits the ultrasonic energy into the chemical reaction liquid.

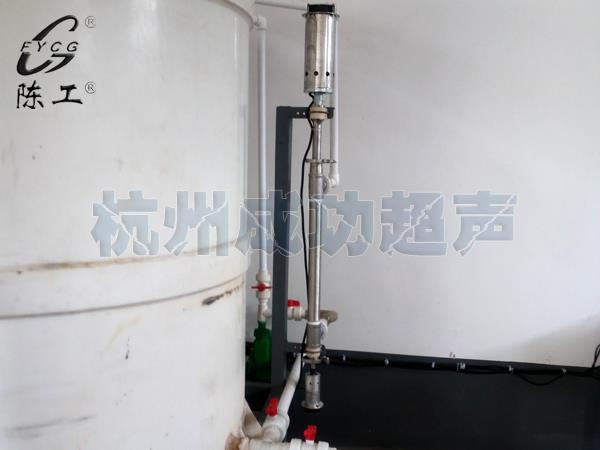

ultrasonic emulsifier.jpg

Ultrasonic Emulsifier Overview

   Ultrasound is the use of physical techniques to create a series of near-extreme extremes in the chemical reaction medium. This energy can not only stimulate or promote many chemical reactions, speed up the chemical reaction, and even change the direction of the chemical reaction, resulting in some effects. Sonochemistry can be applied to almost all chemical reactions such as extraction and separation, synthesis and degradation, biodiesel production, treatment of microorganisms, degradation of toxic organic pollutants, biodegradation treatment, biological cell crushing, dispersion and agglomeration, and the like.

    Industrial-grade ultrasonic disperser is mainly used for large-scale industrial production. The phacoemulsifier produced by Hangzhou Jinghao Machinery has high power, high efficiency and large radiation area. It is suitable for large-scale industrial production. It has real-time monitoring of frequency power, adjustable power and overload alarm function. The industrial-grade ultrasonic disperser has an energy conversion efficiency of 80%-90%.


  Ultrasonic emulsifier function

1. Ultrasonic vibration source (drive power): The 50-60Hz mains power is converted to high-power high-frequency (15kHz-100kHz) power supply to the transducer.

2. transducer (transducer): The conversion of high-frequency electrical energy into mechanical vibration energy.

3. Horn: Connects and secures the transducer and tool head, amplifies the amplitude of the transducer and transmits it to the tool head.

4. Tool head (introduction rod): The mechanical energy and pressure are transmitted to the work object and also have the function of amplitude amplification.
