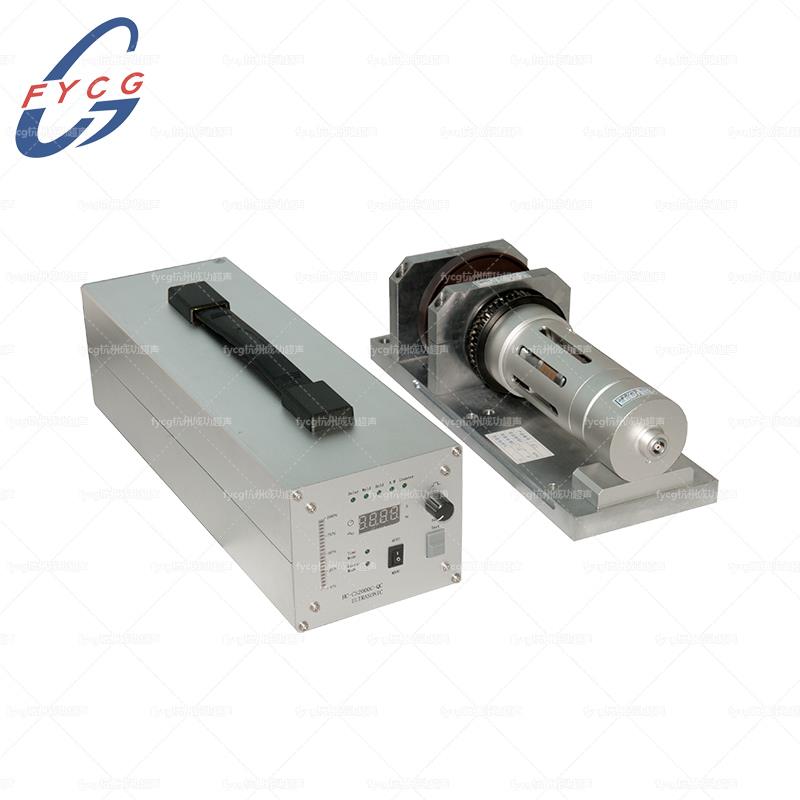

Ultrasonic Fabric Sewing Machine

Ultrasonic lace/fabric sewing machine used ultrasonic vibration and steel moulds, the above processing will be finished together with pressure.

    With ultrasonic sewing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear.

   These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example.

    The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.

Frequency	35 KHz
Power	800 W
Rotary Welding Horns Width	12 mm
Power Adjust Method	File or Continuous
The Horns Surface Hardness	HRC56
Real-time Display	Working Current
Synchronizing Wheel Specifications	46XL Trapezoidal Tooth,Width16mm
Synchronizing Belt Matched	The Length is not more than730mm,the Width 12mm
Allowable Rotation Speed	100 r/min.
Install Bolt	M8, 4 pcs

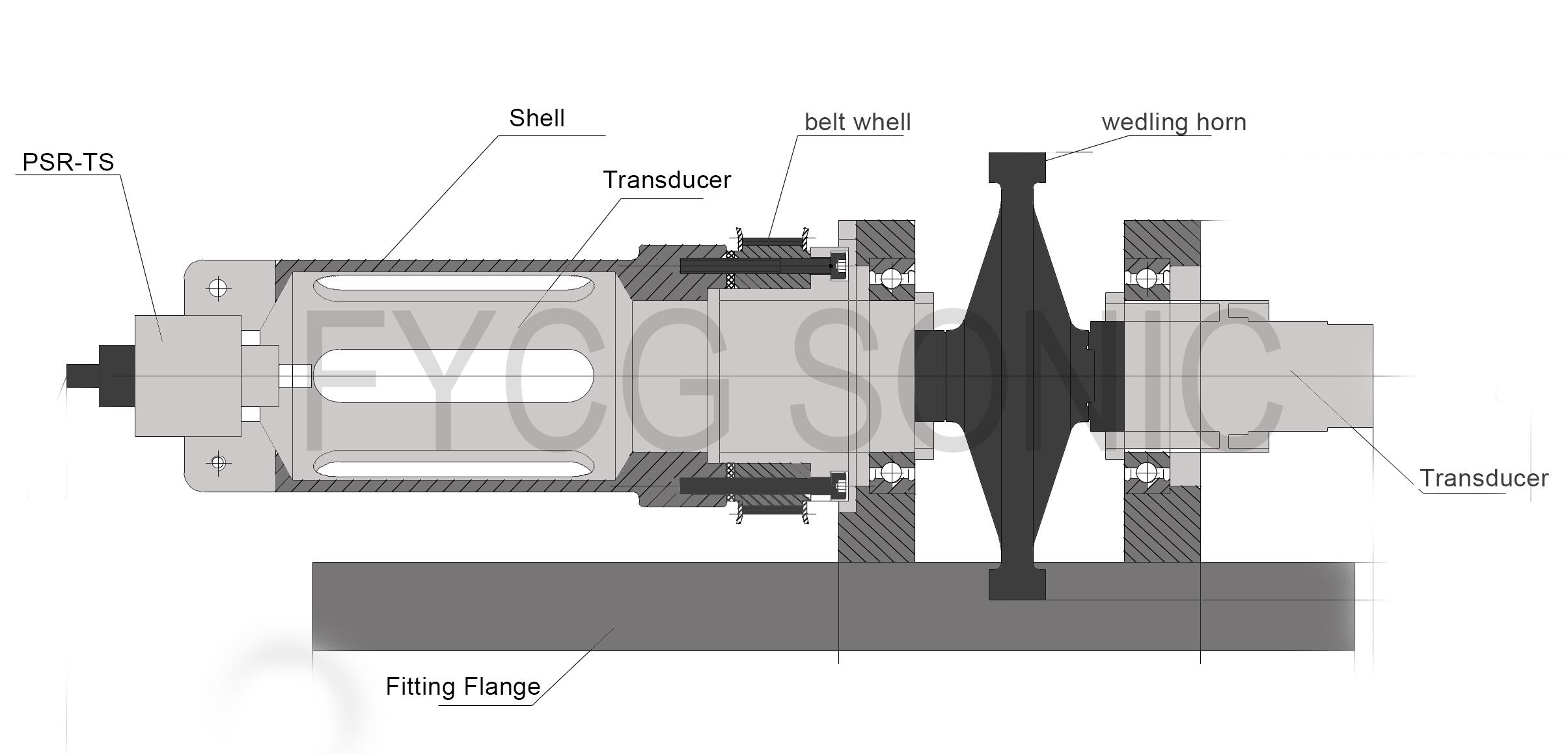

Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.
