40K Ultrasonic Rubber Cutter High Speed Cutting
Description
Technical Parameters
Description:
Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main feature is cut fast, precise and the cutting edge is smooth.
The main parts:
Generator: It can transfer the 50-60Hz city electricity to high-power’s high-frequency (15kHz-100kHz) power supply, and then provide to the transducer.
Transducer: It can transfer high-frequency electricity energy to machine vibration energy.
Booster: It used to connect and fix the transducer and horn. When enlarge the transducer swing, it will carry to the horn.

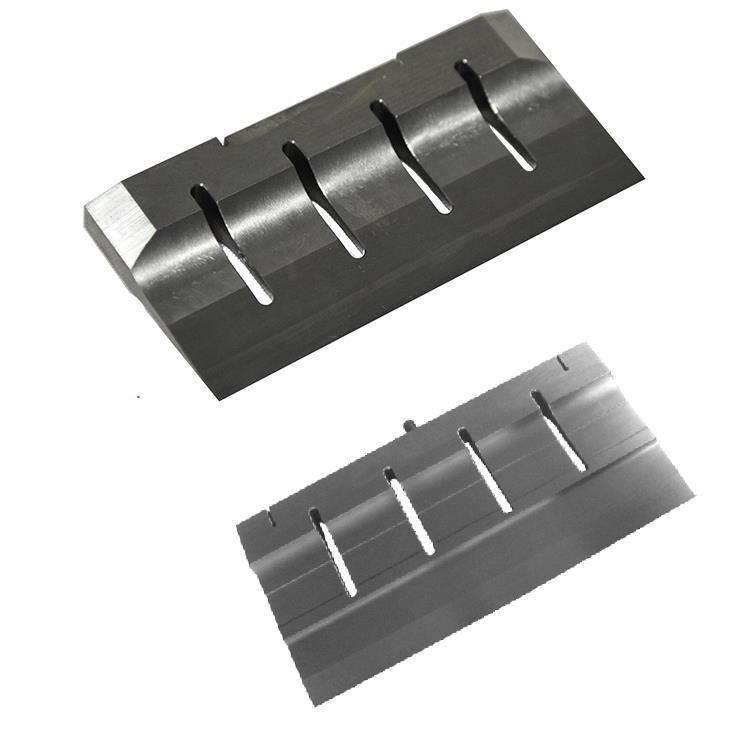

Blade: It used to send the machine energy and pressure to the working matter.
Specification:
Frequency | 40Khz |
Power | 500W- 800W |
Input | AC110-130V; 220-240V, 50/60Hz |
Power Controller | stepping or continuous |
Material Of Cutting Head | aluminum alloy, stainless steel, titanium alloy, alloy steel. |
Machine Wight | 4 kg-16KG |
Accessories | foot switch, additional blade |
Cooling Device | compressed air mouth can be installed. |
Cable Length | 2M or customized |
Foot Switch | available |
Ultrasonic cutting advantage and features:
1. Cut the material quickly and precisely
2. Smooth and trace-less cutting edge
3. Powerful, effective reliable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.
Applications:
Rubber
Nylon
The side of the tir
Synthetic fabrics
Plastic, sheet material
Competitive Advantage:
★ The use of high power ultrasonic transducer vibrating element, ensure the long
time stable working.
★ The cutting speed is improved greatly, the efficiency 10 times higher than the
traditional cutting knife.
★ Cutting all kinds of ordinary tool to cut products, solve production problems.
★ Can be installed high hardness blade, cutting blade can be replaced, greatly
reducing the use cost.
★ Cutting tool complete varieties, can also be customized according to customer
process shaped cutting tool.
★ Installation, easy to use, almost does not change the original cutting process.
★ Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special.
★ Can use air-cooled, water-cooled design, adapt to various working conditions and
environment.
40Khz / 20Khz
Sonic Power: 600-2400w /1200w-4800w
Max cutting width: 800-2000 mm
Max cutting thickness: 25-50 mm
Cutting angle: 18°-30°
Electric power: 750w
