Ultrasonic Converter
Description
Technical Parameters
Ultrasonic Converter, which can replace the Branson and Rinco, similar quality and cheap price, is a device that converts electric energy, mechanical energy or sound energy from one form of energy to another form of energy, called transducer, also known as active sensor. The most mature and reliable device is to realize the conversion of electric energy and sound energy with the piezoelectric effect, called a piezoelectric transducer.

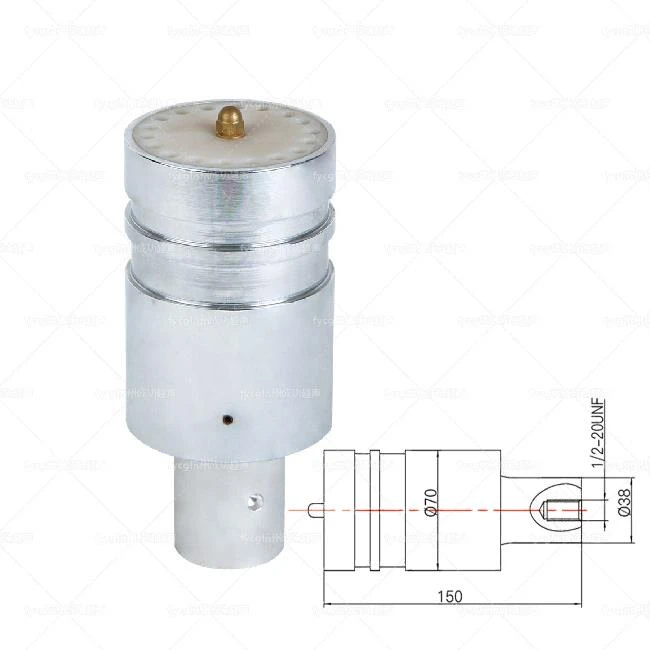

YP-J2020-W2
Replace Type | Frequency | Capacitor Range(pF) | Shell Diameter(mm) | Screw Size |
Branson 402 | 19.70-20.10 | 11000-12000 | 70 | 1/2-20UNF |
YP-J2020-W3
Replace Type | Frequency | Capacitor Range(pF) | Shell Diameter(mm) | Screw Size |
Branson 902 | 19.70-20.10 | 11000-12000 | 70 | 1/2-20UNF |
YP-J2020-W4
Replace Type | Frequency | Capacitor Range(pF) | Shell Diameter(mm) | Screw Size |
Branson 502 | 19.70-20.10 | 11000-12000 | 75 | 1/2-20UNF |
YP-J4010-W2
Replace Type | Frequency | Capacitor Range(pF) | Shell Diameter(mm) | Screw Size |
4TH | 39.5-40.1 | 5500-6000 | 45 | M8 |
Other application, like cutting, welding and sonochemistry, please contact us online or send emails.
